Food Beverage Industry Filtration System 10000l/H Quartz Sand / Manganese Filter Remove Particles Bacteria

Place of Origin Taian, Shandong, China
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number TLD 1000L/H-100,000L/H
Minimum Order Quantity 1
Price $3000-$20,000/unit
Packaging Details Optional
Delivery Time 20-25 working days
Payment Terms L/C, T/T
Supply Ability 100 unit/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Tank Diameter According To Equipment Model Tank Capacity According To Equipment Model
Application Water Treatment Maximum Pressure 0.6MPa
Material Stainless Steel/Carbon Steel Valve Position Side
Backwash Time According To Equipment Model Filter Media Quartz Sand Filter, Manganese Filter, Quartz Sand Filter, Sand Filter, Manganese Filter
Highlight

Food Beverage Industry Filtration System

,

10000l/H Filtration System

,

Quartz Sand Filtration System
Leave a Message
Product Description

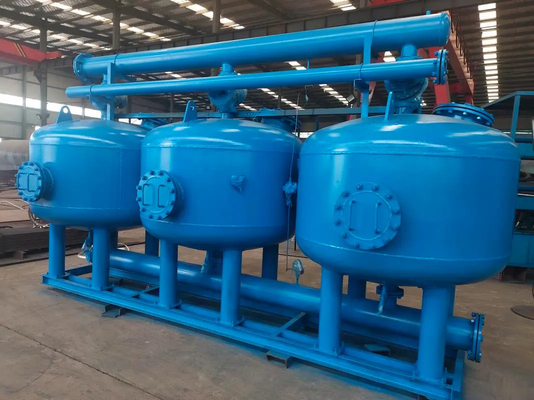

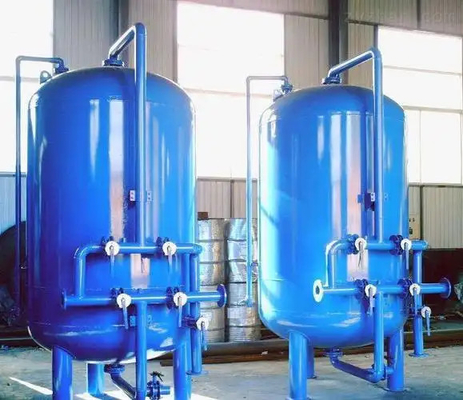

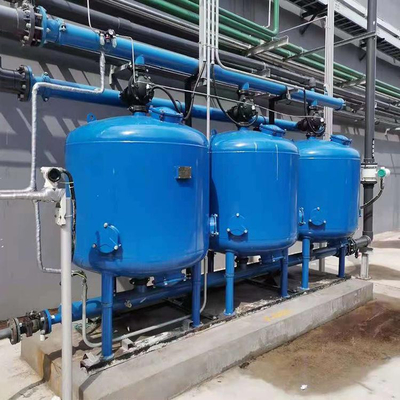

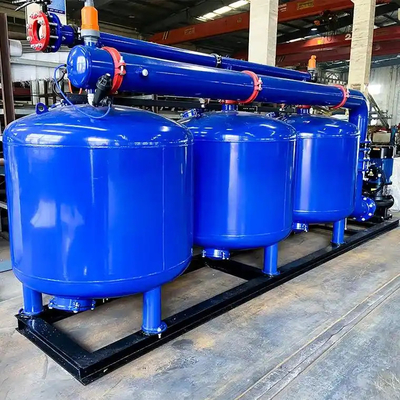

Quartz Sand Filter, Activated Carbon Filter, Manganese Sand Filter



Mainly filter suspended solids, organic matter, colloidal particles, microorganisms, chlorine, odor, part of the heavy metal ions in the raw water, and ultimately achieve the effect of reducing water turbidity and purifying water quality. It is a kind of high-efficiency filtration equipment, belonging to coarse filtration.



Food Beverage Industry Filtration System 10000l/H Quartz Sand / Manganese Filter Remove Particles Bacteria 0Food Beverage Industry Filtration System 10000l/H Quartz Sand / Manganese Filter Remove Particles Bacteria 1



Tank material: glass fiber reinforced plastic/carbon steel/stainless steel/

Control mode: automatic control/manual

Filter material: quartz sand / activated carbon / manganese sand



Function: The quartz sand filter is loaded with quartz sand of various particle sizes, which mainly filters solid impurities such as suspended matter, organic matter, and gelatinous particles in the raw water. An activated carbon filter mainly filters the odor and color in the water. Manganese sand filter mainly filters iron and manganese ions in the water to reach the national standard.



Filtration capacity (T/H) 1 2 4 5-6 7-8 9-10 12-20 30 35-40 50
filter media Quartz Sand/Activated Carbon/Manganese Sand
Tank material fiberglass/glass reinforced plastic/carbon steel/stainless steel/
Diameter φ200 φ300 φ400 φ500 φ600 φ750 φ1000 φ1200 φ1400 1500
Working Pressure 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5

Working

temperature

 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40
Water inlet 20 25 32 40 40 50 70 80 100 100
Water outlet 20 25 32 40 40 50 70 80 100 100

Equipment

Weight

 235 330 415 650 800 1300 2047 2849 3549 4090
Parameters for reference only, the actual prevail
