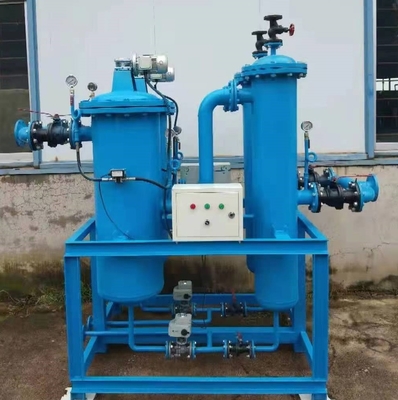

Advanced 1T/H-100T/H Industrial Sand Filter Self Cleaning Fiberglass Filters For Water Purification Systems

Place of Origin Tai'an, Shandong
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number 1T/H-100T/H
Minimum Order Quantity 1 unit
Delivery Time As per requirements

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Pre-treatment For Producing Purified Water, Boiler Feedwater, Industrial Process Water, And Drinking Water. Product Information Quartz Sand Filtration, Activated Carbon Filtration, Manganese Sand Filter, Shallow Bed Sand Filtration, Self-cleaning Filtration, Precision Filtration
Purpose Production Of Purified Water, Boiler Feedwater, Industrial Process Water, And Drinking Water Filtration System Material Stainless Steel, Carbon Steel, Fiberglass
Brand Tonglida
Highlight

100t/h industrial sand filter

,

industrial sand filter self cleaning

,

1t/h quartz sand filter
Leave a Message
Product Description





Product Description:

The filtration system is composed of several filters and cartridges that vary in precision. These include the quartz sand filter, activated carbon filter, manganese sand filter, shallow bed sand filter, self-cleaning filter, and precision filter. The selection of different filter media and cartridges will depend on the specific requirements of the user. When applied under a certain level of pressure, this system is highly effective in removing suspended solids, organic matter, colloidal particles, and other impurities from turbid water. Moreover, it can also eliminate odors and colors, ultimately leading to the efficient filtration and purification of water quality.

Being a highly versatile filtration equipment, it finds wide applications in various industries. These include power plants, electronics manufacturing, beverage factories, tap water treatment plants, petrochemicals, metallurgical, textile manufacturing, paper mills, food production, swimming pools, municipal engineering, and other processes that require industrial water, domestic water, circulating water, and wastewater treatments.

With this filtration system, industries can be confident in achieving high-quality water purification results, which meet their exact requirements.

Model number Flow rate Inlet and outlet diameter Drain diameter Tank diameter Equipment height Motor power
(m³/h) (mm) (mm)
DN40 18 DN40 DN25 219 700
DN50 20 DN50 DN25 219 700 0.18
DN65 30 DN65 DN25 273 1300 0.18
DN80 40 DN80 DN25 273 850 0.18
DN100 60 DN100 DN50 273 936 0.18
DN125 100 DN125 DN50 325 1018 0.37
DN150 150 DN150 DN50 325 111 0.37
DN200 250 DN200 DN50 426 1427 0.37
DN250 400 DN250 DN50 426 1685 0.37
DN300 500 DN300 DN50 530 2100 0.55
DN350 750 DN350 DN80 630 2085 0.55
DN400 1000 DN400 DN80 600 2360 0.55
DN450 1200 DN450 DN100 600 2632
DN500 1500 DN500 DN100 700 2919
DN600 2100 DN600 DN100 800 3510
DN700 3000 DN700 DN200 900 4100
DN800 3800 DN80   1200



Features:

Pre-treatment is an essential process for the production of various types of water including purified water, boiler feedwater, industrial process water and drinking water.

The pre-treatment process involves multiple steps depending on the type of water being produced. For example, the pre-treatment process for producing drinking water may include coagulation, sedimentation, and filtration, while the pre-treatment process for producing industrial process water may involve pH adjustment and ion exchange.

The purpose of pre-treatment is to remove impurities and contaminants such as suspended solids, bacteria, viruses, and dissolved minerals from the source water. This helps to ensure that the final product meets the required quality standards and is safe for its intended use.



Technical Parameters:





Efficient filtration: Our on-site filtration system offers a variety of filter media options that effectively remove impurities, including suspended solids, organic matter, colloidal particles, and microorganisms. This improves water quality and ensures that your needs are met.



Biological purification: Our system goes further by degrading organic matter and harmful substances, enhancing the overall purification effect to provide you with the cleanest water possible.



Backwash regeneration: Additionally, our backwashing and regeneration process can restore the filtering performance of the quartz sand, enhancing its longevity and enabling continuous water purification for your convenience.



Space-saving: Our product's compact structure and small footprint allow it to effectively save space and avoid taking up excess room in your facility.



Easy installation: Our filtration system is simple to operate, and its easy installation process minimizes any downtime, making it a convenient choice for your water purification needs. Once connected to your inlet and outlet water pipes, it's ready for immediate use. This product has a long service life, which helps to reduce your operating costs over time.



Strong adaptability: Our filtration system is suitable for different water qualities and quantities, displaying an exceptional level of adaptability, making it a versatile and reliable choice for your water purification needs.



Applications:



Water Filtration in Various Industries

Industrial process water, such as nozzle protection and heat exchange station water, can be filtered to improve its quality. This is important to ensure that the industrial processes are operating at their optimal level.

Water filtration is also crucial in industries like steel, metallurgy, papermaking, and power generation. These industries rely on circulating water, which can become contaminated with impurities that affect their equipment and processes. Other industries that require water filtration include petrochemicals, food, and air conditioning systems.

Raw water treatment is essential to remove impurities from sources such as surface water, rivers, lakes, and seawater. Filtration is an effective method of treating raw water and making it suitable for consumption or industrial use.

Irrigation filtration is needed for agricultural fields, parks, municipal water supplies, and golf courses. This ensures that the water used for irrigation is free from impurities that affect the growth and health of plants.

Water filtration is also necessary for aquaculture, swimming pools, and water parks, where water quality is crucial for maintaining the health of aquatic species and ensuring the safety of swimmers.

Finally, water filtration is important in various industries such as power, electronics, beverages, petroleum, chemicals, metallurgy, textiles, papermaking, food, swimming pools, and municipal engineering. Filtration is essential in the treatment of industrial water, domestic water, circulating water, and wastewater to remove impurities and ensure that the water is safe for use.
