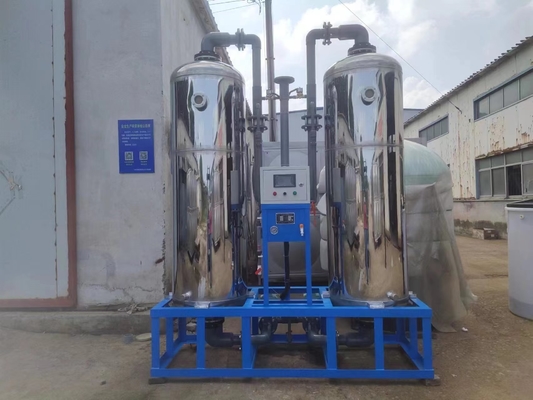

1-100T/H Double Tank Water Softener With FRP Materials Performance

Place of Origin Taian, Shandong
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number 1T-100T
Minimum Order Quantity 1 unit
Delivery Time As per requirements

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Automation Level, Stable Water Quality, High Efficiency, Low Energy Consumption, Low Operating Costs. Application Fields Industrial Boilers, Central Air Conditioning Systems, Heat Exchangers, Hotels, Restaurants, Food And Chemical Industries, Laundry And Dyeing, Medical And Sanitation, Etc.
Materials Fiberglass Reinforced Plastic (FRP), Stainless Steel, Carbon Steel Product Specifications 1-100T/H
Brand Tonglida Origin Taian, Shandong
Product Information Automatic Water Softening Equipment - Dual-Tank, Single-Tank, Continuous Water Production
Highlight

100t/h double tank water softener

,

100t/h twin tank water softener

,

frp twin tank water softener
Leave a Message
Product Description





Product Description:

The fully automatic water softener comes with a comprehensive automatic control system and can be customized as a single-tank or dual-tank system based on user requirements. The system operates automatically, with one tank in use while the other serves as a backup. When the operating tank reaches the set water production capacity, it automatically goes into regeneration mode, and the backup tank takes over the operation.

The entire softening system operates in a fully automatic mode, and it includes several stages of the softening tank process like running, backwashing, brine suction, ion exchange, forward flushing, and standby.

In the process of softening water, the raw water flows through the resin tank containing ion exchange resin that features an automatic control valve. In the resin tank, exchangeable ions Na+ in the resin undergo ion exchange with cations like Ca2+ and Mg2+ in the water. This exchange results in the water hardness of the softener outlet being ≤0.03mmol/L.

Once the system reaches the set flow rate, the controller automatically initiates the regeneration process. The process involves four major steps:

  1. Backwashing: Water is directed upward through the bottom distributor to flush and loosen the resin bed. In this process, accumulated suspended particles from the resin surface are simultaneously removed.
  2. Brine Suction Regeneration: Saturated brine solution diluted to a concentration of 5-8% is injected into the resin tank via a brine injector. The brine solution flows downward through the deactivated resin bed, regenerating the resin and restoring its original exchange capacity.
  3. Exchange: The exchange process consists of two steps. In the first step, clean water with the same flow rate as the regeneration liquid is used to thoroughly regenerate any uninvolved brine through the resin bed. This step is called exchange. In the second step, the regeneration waste liquid in the resin pores is displaced from the resin bed.
  4. Forward Flushing: The purpose of forward flushing is to completely remove the residual regeneration waste liquid from the resin bed and clean it until the water meets the required standards.



Project Name   Unit 1T/H 2T/H 4T/H 6T/H 8T/H 10T/H 20T/H 80T/H 100T/H

Inlet pressure mpa 0.15-0.25 0.2-0.3
Water production T/H 0.8-1.2 1.8-2.2 3.8-4.2 5.7-6.2 7-9 9-11 18-22 70-90 90-110
Raw water turbidity O ≤2
Raw water hardness mmol/L ≤15
Residual hardness of soft water mmol/L ≤0.03
Self-consumption water rate % 4
Power supply   Single-phase electricity 50HZ 220V
Diameter of exchange column Stainless steel head mm             ∅650 ∅1200 ∅1400
Ordinary head mm ∅160 ∅200 ∅300 ∅360 ∅420 ∅420 ∅640 ∅1180 ∅1400
Resin tank height   mm         1500 1800
Inlet and outlet water pipeline Solenoid valve mm DN15 DN20 DN40 DN65 DN125 DN150
Valve body mm DN20 DN25
Flow meter   L/H 60 100 100 160 160 160 400 2000 2500
Resin filling capacity Solenoid valve KG
Total weight of equipment   KG
Salt tank size Self-processing mm 225*650 225*650 315*650 315*650 410*650 410*650 640*750 890*800
  Purchase from outside               800L

Features:

The automation level of our system is very high. This means that many of the functions are automated, which can save time and reduce human error.

In addition, our system boasts a stable water quality. This is important because it ensures that the water is safe and free of contaminants.

Furthermore, our system has a high efficiency. This means that it can effectively process water at a fast rate while maintaining its high quality.

Moreover, our system has low energy consumption. This is beneficial because it reduces our environmental impact and can help save on energy costs.

Lastly, our system has low operating costs. This can help save on overall expenses and make our system a cost-effective solution for water treatment.



Technical Parameters:

Product Features

Our product comes equipped with a host of features to ensure hassle-free operation and efficient water softening.

1. Simple and Reliable Operation

The automatic control system allows for easy operation while ensuring reliable performance.

2. Strong Adaptability

Our water softener is capable of handling water with high levels of hardness - ≤15mmol/L - and can reduce residual hardness to ≤0.03mmol/L in a single pass, making it ideal for a variety of applications.

3. Low Operating Costs

We have designed our water softener to consume low resins and salts, while delivering stable water quality and requiring minimal regeneration time. This helps to keep operating costs low for our customers.

4. Compact Design

Our water softener is a lightweight equipment with a compact and rational design, which requires only a small footprint. This makes it ideal for use in homes, offices and industrial settings where space is at a premium.

5. Easy Installation

The complete machine comes from the factory, and installation is simple - only the inlet and outlet pipes and power supply need to be connected to start water production. This helps get our customers started quickly and with minimal fuss.



Applications:

The Versatility of Automatic Water Softeners

The automatic water softener is a highly useful device that provides an effective solution for the treatment of circulating makeup water in various steam boilers, hot water boilers, heat exchangers, steam condensers, air conditioning systems and direct-fired equipment and systems. Its usefulness however extends beyond industrial settings as it is also employed in domestic water treatment.

Single-stage or multi-stage water softeners are used to significantly reduce the hardness of the produced water. This makes the water softening equipment ideal for sectors such as food, electroplating, pharmaceuticals, chemicals, printing and dyeing, textiles, electronics, as well as pre-treatment for desalination systems. The automatic water softener is an essential tool in achieving the desired quality of water needed for each specific use.
