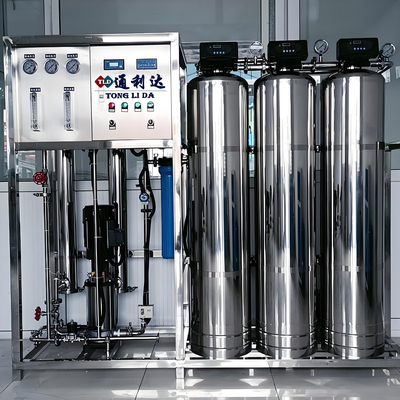

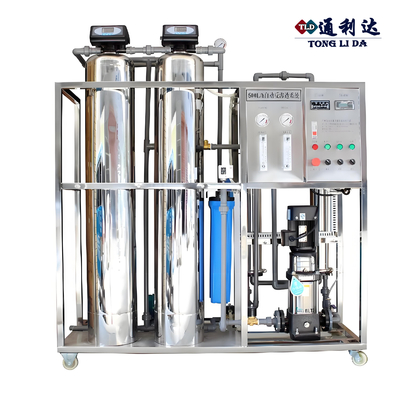

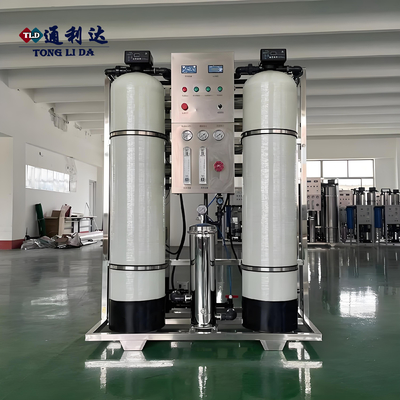

250L/H Regular Industrial RO System With Low Energy Consumption RO Membrane 1.1m*1m*1.5m

Place of Origin Taian, Shandong, China
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number TLD-RO
Minimum Order Quantity 1
Price $1660
Packaging Details Wooden Case or Optional
Delivery Time 15 working days
Payment Terms L/C,D/A,D/P,T/T,Western Union
Supply Ability 100 unit/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Marketing Type Equipment Membrane Material Polyamide
Capacity Varies Depending On Model And Application Temperature 4 - 50°C
Condition New Pressure Hydrostatic 300 Psi Working:20 - 125 Psi
Productivity 250-500L/Hour Certifications ISO
Service ODM, OEM, Customization Membrane Type Thin-film Composite
Control Automatic Packing Wooden Box
Technology Reverse Osmosis Warranty 1 Year
Highlight

250L/H Industrial RO System

,

1.5m Industrial RO System
Leave a Message
Product Description

Shandong Tonglida Heavy Industry Machinery Co.,Ltd. established in 2014, is a professional company which produces and manufactures many kinds of water treatment equipment. It is a member of China Boiler Water Treatment Association. Our Company provides complete sets of water treatment engineering design, manufacturing, installation, service, training, etc.





Unlocking Purity: How Reverse Osmosis Transforms Water?



Just as the name suggests, it is a system through which water is filtered to your desired standard. A very simple explanation is that the water is filtered using a pressure difference and polymer membrane separation technology.





250L/H Regular Industrial RO System With Low Energy Consumption RO Membrane 1.1m*1m*1.5m 0




How it works

  • In the reverse osmosis process, by applying pressure higher than the natural osmotic pressure, the water molecules are made to pass through the membrane in the reverse direction, thus obtaining pure water on the low pressure side.



  • The reverse osmosis membrane, is the core component of a reverse osmosis system. These membranes effectively block dissolved salts, particulate matter and organic contaminants, and their extremely small pore size of 0.0001 microns ensures that only water molecules and solvents smaller than this size pass through. Chemical ions, bacteria, fungi and viruses are blocked outside the membrane and discharged with the wastewater.

250L/H Regular Industrial RO System With Low Energy Consumption RO Membrane 1.1m*1m*1.5m 1

250L/H Regular Industrial RO System With Low Energy Consumption RO Membrane 1.1m*1m*1.5m 2



250L/H Regular Industrial RO System With Low Energy Consumption RO Membrane 1.1m*1m*1.5m 3





Application Area

  • Reverse osmosis systems can provide high quality pure water in the power, metallurgy, light industry, automotive, semiconductor, chemical, pharmaceutical, food, health care and other industries.



Basic Configuration

Treatment Capacity

250-500L/H

 Basic Configuration Model Size(m) Weight Special Tailor-made

Fully Automatic Control



Integrated Design (no need to install parts by yourself)

Softening Water Tank/Dosing Device

 TLD-RO-S 1.1*1*1.5 400kg Pre-treatment Tank Material Customization

Quartz Sand Filter

 Output Water Indicator

Activated Carbon Filter

 Single-stage RO/Double-stage RO/EDI, etc.
Precision Filter Explosion-proof Grade
High Desalination Rate Reverse Osmosis Membrane (Test Report Available) Fully Automatic Control/PLC Control/Intelligent Monitoring and Control
Raw Water Pump Grade of Protection
High Pressure Pump High Altitude
Fully Automatic Control System (online conductivity monitoring, etc.) Outdoor





Our services



  • High Quality-Highly Recognized Parts Brands
  • High Reputation-Manufacturer of Water Treatment Equipment Trusted for Over 10 Years, ISO9001 Certificted
  • High Services-Unlimited Technical Guidance and Regular Return Visits
  • High Operation-Automatic Backwash of Pre-treatment System
  • High Performance-High Efficiency Filtration, RO Membrane Desalination Rate ≥ 99.40
  • High Guarantee- Water Quality Stability, Issued by the Quality Inspection Report; Conductivity Detection Instrument attached to the system, free return if Not Up To Standard
