1-100T/H Condensate Water Recovery System With Fully Automatic ISO9001 450mm 500mm 550mm 600mm 800mm Tank Diameter

Place of Origin Tai'an, Shandong
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number 1T/H-100T/H
Minimum Order Quantity 1 unit
Delivery Time As per requirements

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Anti-cavitation, Energy-saving, Environmentally Friendly Recovery Capacity 1-100T/H
Working Pressure 0.1-1.6MPa Customization Customization Supported
Material Carbon Steel, Stainless Steel Application Fields Papermaking, Chemical Industry, Food Industry, Pharmaceuticals, Grain And Oil Processing, Rubber Industry, Cotton Spinning, Printing And Dyeing, Wood Industry, And Other Industrial Enterprises With Steam Heating Systems For Closed-loop Condensate Water Rec
Certifications ISO9001 Quality System Certification Control Mode Fully Automatic Control, PLC Control
Highlight

100T/H condensate water recovery system

,

450mm condensate water recovery

,

automatic condensate water recovery system
Leave a Message
Product Description

Product Description:

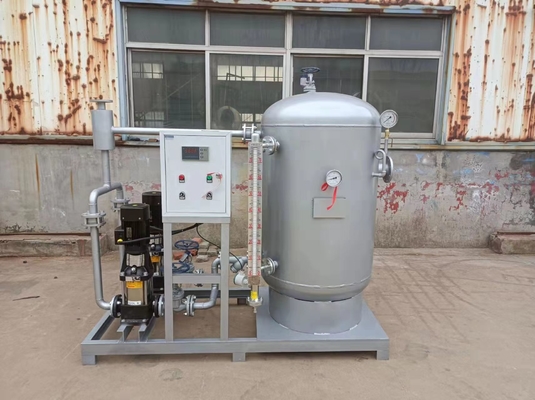

The condensate water recovery device can be powered by steam or electricity, depending on the user's requirements. The retrieved condensate water can either be returned directly to the boiler or to a user-designated location. The device consists of several components, such as a specialized condensate water recovery pump, a motor, a recovery tank, a cavitation elimination device, a liquid level sensor, a magnetic flip liquid level gauge, a pressure gauge, a filter, a pressure regulating valve, a blowdown valve, a control panel, and others.

The steam condensate water enters the tank via a steam trap, which separates the steam from the water. Once the liquid level sensor detects a high liquid level in the tank, it sends a signal to the control panel, which then triggers the condensate water recovery pump. The pump, equipped with a cavitation elimination device and filter, carries the high-temperature condensate water and some secondary steam to the water tank (or the user-designated location), thereby completing the steam condensate water recovery process.

If the liquid level sensor detects a low liquid level in the tank, it sends a signal to the control panel, which in turn stops the condensate water recovery pump. The recovery device is fully automated, with dual pumps operating in a backup mode and automatically switching between them. The device operates by simply turning it on.

Model number TLD-1T/H-A TLD-2T/H-A TLD-4T/H-A TLD-6T/H-A TLD-8T/H-A
Recovery volume 1T/H 2T/H 4T/H 6T/H 8T/H
Tank diameter 450 500 550 600 800
Equipment dimensions 1300*500*1600 1600*700*1600 1500*600*1700 1750*800*1700 1800*900*2100
Weight 360kg 550kg 750kg 880kg 900kg

Model number TLD-10T/H-A TLD-2T/H-B TLD-4T/H-B TLD-6T/H-B TLD-8T/H-B
Recovery volume 10T/H 2T/H 4T/H 6T/H 8T/H
Tank diameter 1000 350 450 550 800
Equipment dimensions 1900*1100*2200 2300*500*1900 2700*1100*2000 2900*1200*2000 3200*1300*2100
Weight 980kg 450kg 800kg 880kg 1000kg



Features:

Anti-cavitation, Energy-saving, Environmentally Friendly

When it comes to industrial processes, it's important to find solutions that not only get the job done but also minimize negative effects on the environment. That's where anti-cavitation technology comes in.

Anti-cavitation technology works to prevent the formation of bubbles or cavities in a liquid, which can cause damage to equipment and increase energy consumption. By using anti-cavitation technology, businesses can save energy and reduce maintenance costs while also improving the lifespan of their equipment.

Another major benefit of anti-cavitation technology is its environmentally friendly nature. By reducing energy consumption and minimizing the need for maintenance and repairs, businesses can lower their carbon footprint and help protect the planet. This is especially important in industries where large amounts of energy and resources are used.

Overall, anti-cavitation technology is a smart solution for any business looking to save money, reduce environmental impact, and improve the efficiency of their operations. With its proven track record of success, it's clear that investing in anti-cavitation technology is a smart choice for businesses of all sizes and industries.



Technical Parameters:

Anti-cavitation

The innovative cavitation elimination device used in this product prevents pump cavitation, ensuring high temperature and sealed conditions for the condensate water recovery system to operate. This eliminates the issue of cavitation and increases the efficiency of the system.


Energy-saving and environmentally friendly

The product recovers and utilizes condensate water, increasing boiler feed water temperature and improving overall efficiency. Using this product can save fuel by approximately 20% while also reducing water usage by 20-80%. This results in reduced investment and operating costs for the water treatment equipment. It also reduces thermal pollution and emissions of pollutants such as smoke, dust, SO2, and NOx from secondary steam, leading to a more environmentally friendly solution.


High automation

The product is designed with automatic control of pump operation, automatic switching between dual pumps, and automatic alarms. This achieves automated closed-loop water return operation, leading to efficient and hands-free use of the system.


Compact size

The product is compact and integrated, taking up minimal space and making it easy to transport, install, and use. By reducing the need for civil construction investment, this product makes for a more cost-effective solution for condensate water recovery.


Simple structure

The product integrates flash tanks, rapid condensate water discharge devices, pressure balance devices, liquid level sensors, purifiers, cavitation elimination devices, and water storage tanks into one cohesive system. The pressure of the balance device in the water storage tank is generally below 0.1MPa. The system can achieve a series of intelligent program controls, making it easy to install and maintain.


Flexible installation

This product can be installed at the beginning of the return water pipeline or according to the layout of steam-using equipment. It can even be installed underground, leading to greater flexibility in setting up the system.



Applications:

The closed-loop condensate water recovery system is commonly used in various industrial enterprises that require steam heating systems, such as papermaking, chemical, petroleum, printing and dyeing, textile, brewing, and rubber industries. This system can effectively recover and reuse the condensate water, which helps to save water resources and reduce the energy consumption of the production process.

In addition to industrial applications, the closed-loop condensate water recovery system can also be used in civil buildings such as hotels, hospitals, and other commercial facilities. By converting the condensate water generated by the indirect heat exchange system into closed-loop recovery, this system replaces the conventional open condensate water tanks, making it more efficient and environmentally friendly.

The system is designed to be easy to install and maintain, with user-friendly interfaces and reliable components. Its intelligent control system can monitor and adjust the water level, temperature, and pressure to ensure the system operates smoothly and efficiently. With its high reliability and cost-effectiveness, the closed-loop condensate water recovery system is becoming increasingly popular in various industries and applications.
