Stainless Steel Condensate Water Recovery Equipment For Food And Beverage Industry

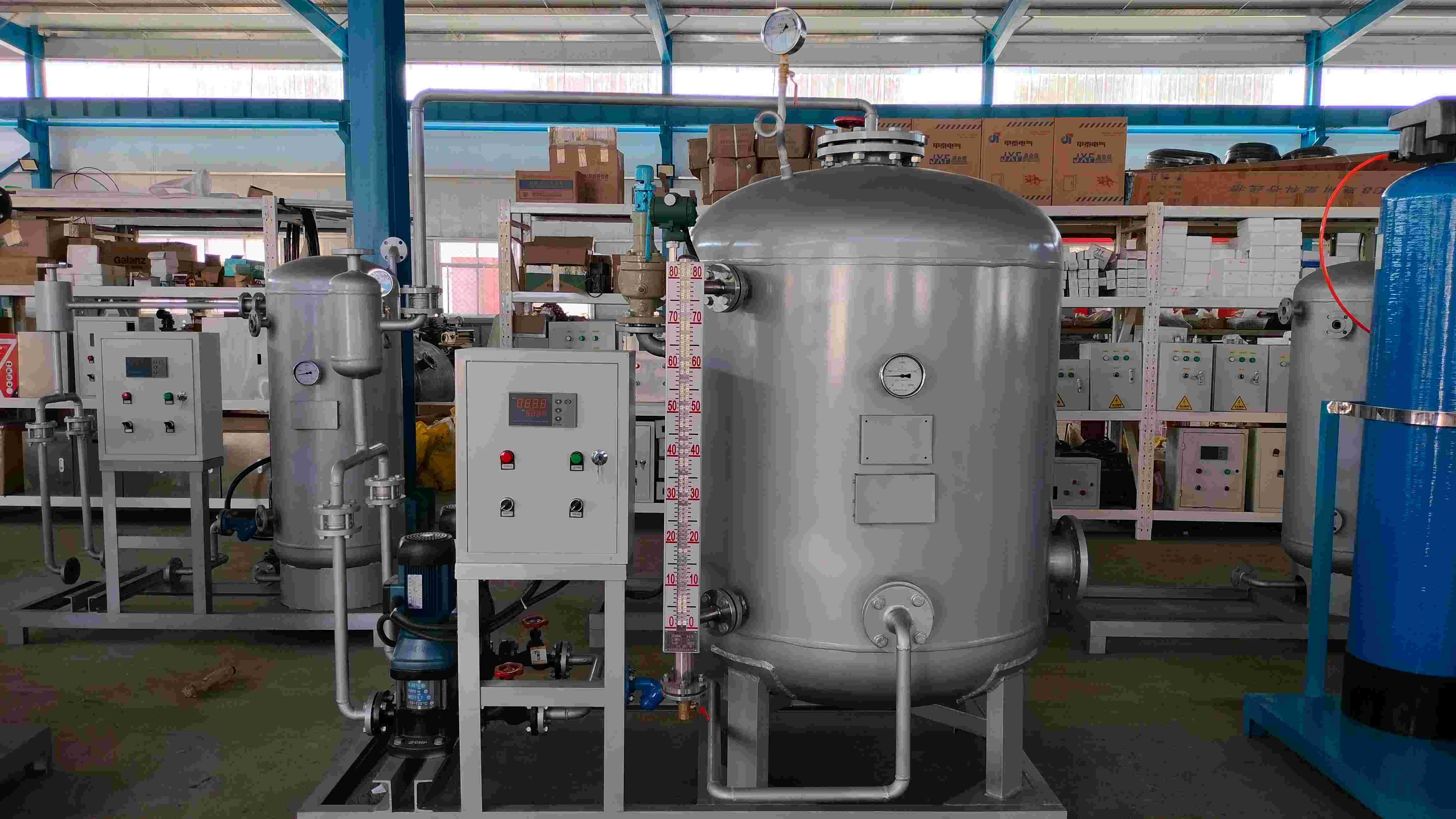

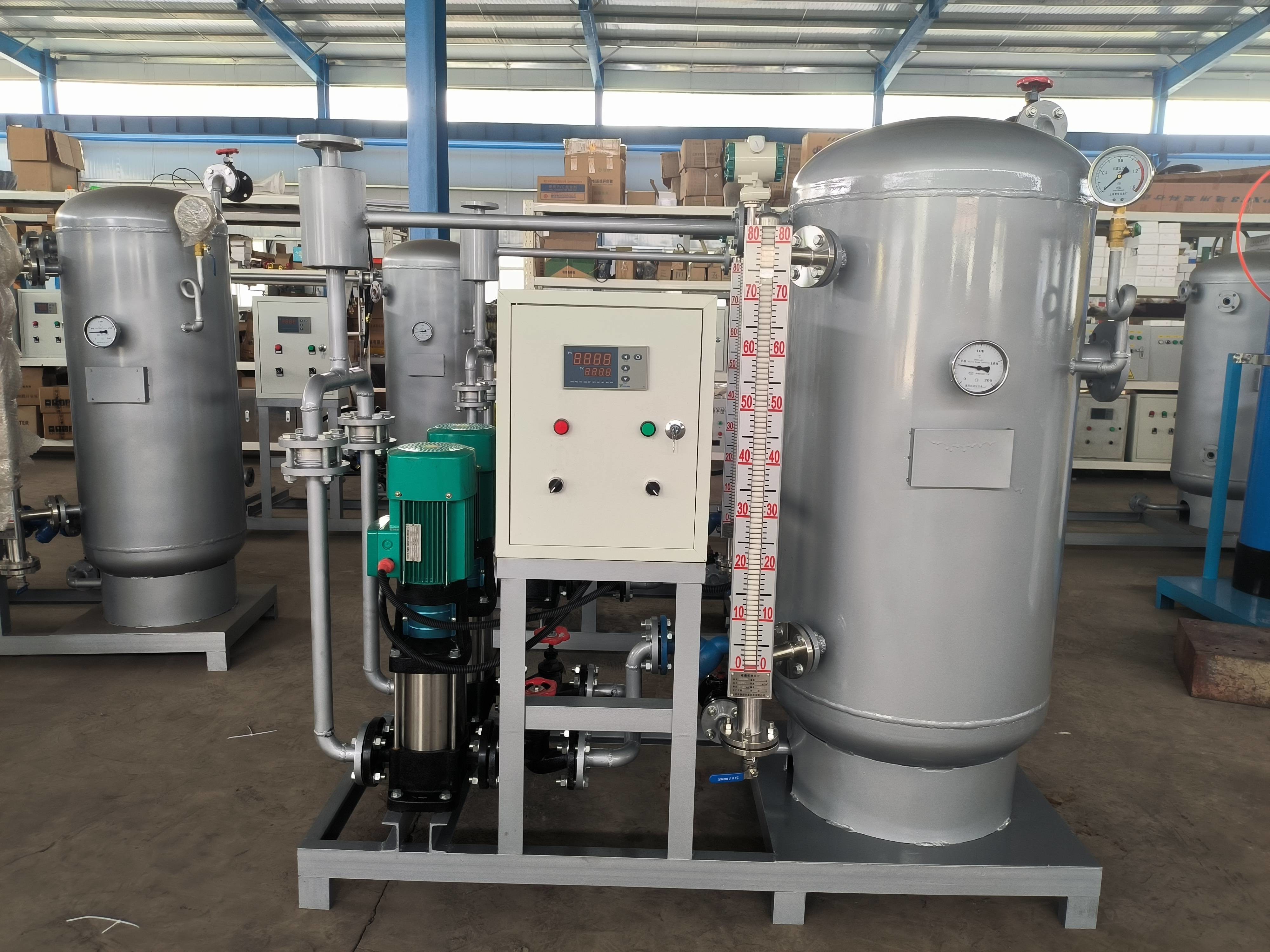

Condensate recovery device consists of condensate recovery pump, motor, recovery tank, cavitation elimination device, liquid level sensor, magnetic flip-plate level meter, pressure gauge, filter, regulator, drain valve, control box and other components.

Steam condensate enters the tank through the steam trap and is separated from the steam in the tank. When the liquid level sensor detects high liquid level in the tank, the liquid level sensor sends a high liquid level signal to the electric box controller, and the electric box controller turns on the condensate recovery pump. High-temperature condensate recovery pump will be high-temperature condensate and a small amount of secondary steam through the pump before the cavitation elimination device, filter delivery to the customer's designated location, the entire steam condensate recovery process is completed.

When the liquid level sensor detects a low liquid level in the tank, the liquid level sensor sends a low liquid level signal to the electric box controller, which shuts down the condensate recovery pump.

Recycling device full automatic control, double pumps a use a backup, automatic switching, turn on the power to work.

• Anti-cavitation: This product utilizes the original cavitation elimination device to prevent the pump from cavitation, so that the condensate recovery system operates under high temperature and airtight conditions.

• Energy saving and environmental protection: this product makes the condensate fully recycled, improves the boiler feed water temperature, correspondingly improves the boiler efficiency, saves about 20% of the fuel, saves about 20-80% of the water, reduces the water treatment equipment investment and operating costs, reduces the secondary steam emission of thermal and noise pollution and flue gas pollution and smoke SO?, NOX, etc., to alleviate the emission of environmental pollution.

• High automation procedures: This product adopts measures like automatic control of water pump opening, automatic switching of double pumps, automatic alarm, etc. to form closed backwater automation operation.

• Small size: this product is electromechanical integration, small size, easy to transport, occupies an area of less, easy to install and use, reduce the investment in civil construction.

• Simple structure: set of flash tank, condensate fast discharge device, pressure balancing device, liquid level changer, decontaminator, vapor eliminator, water storage tank as a whole. Normally, the water storage tank balancing device pressure equipment in the 0.1MPa below, the system operation is able to achieve automatic opening and closing, automatic alarm, automatic pressure regulation and condensate pump automatic switching and a series of intelligent program control. Good equipment integrity, easy installation and maintenance.

• Strong installation flexibility: can be installed at the beginning of the return water pipeline, but also according to the arrangement of steam equipment, installed in the underground.
