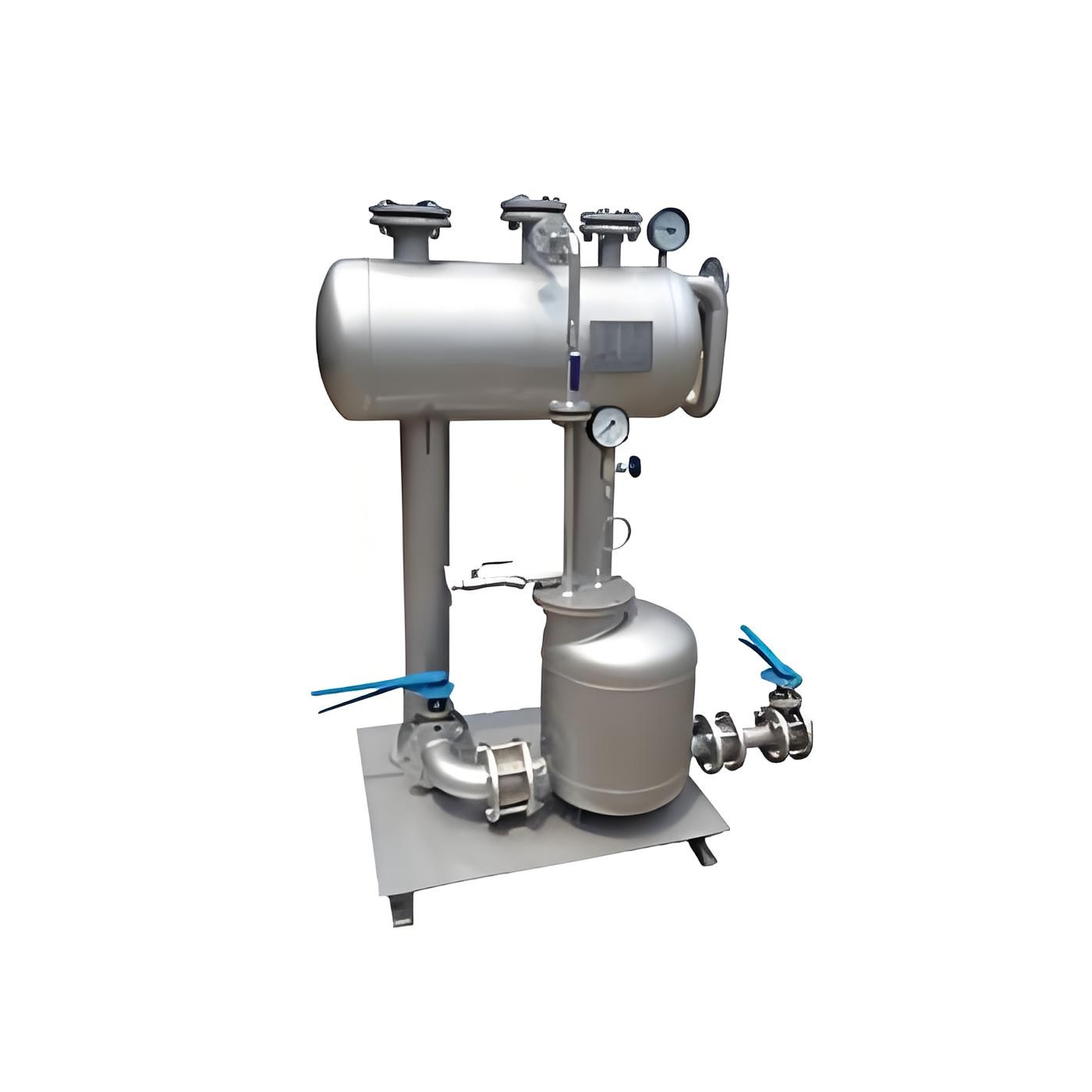

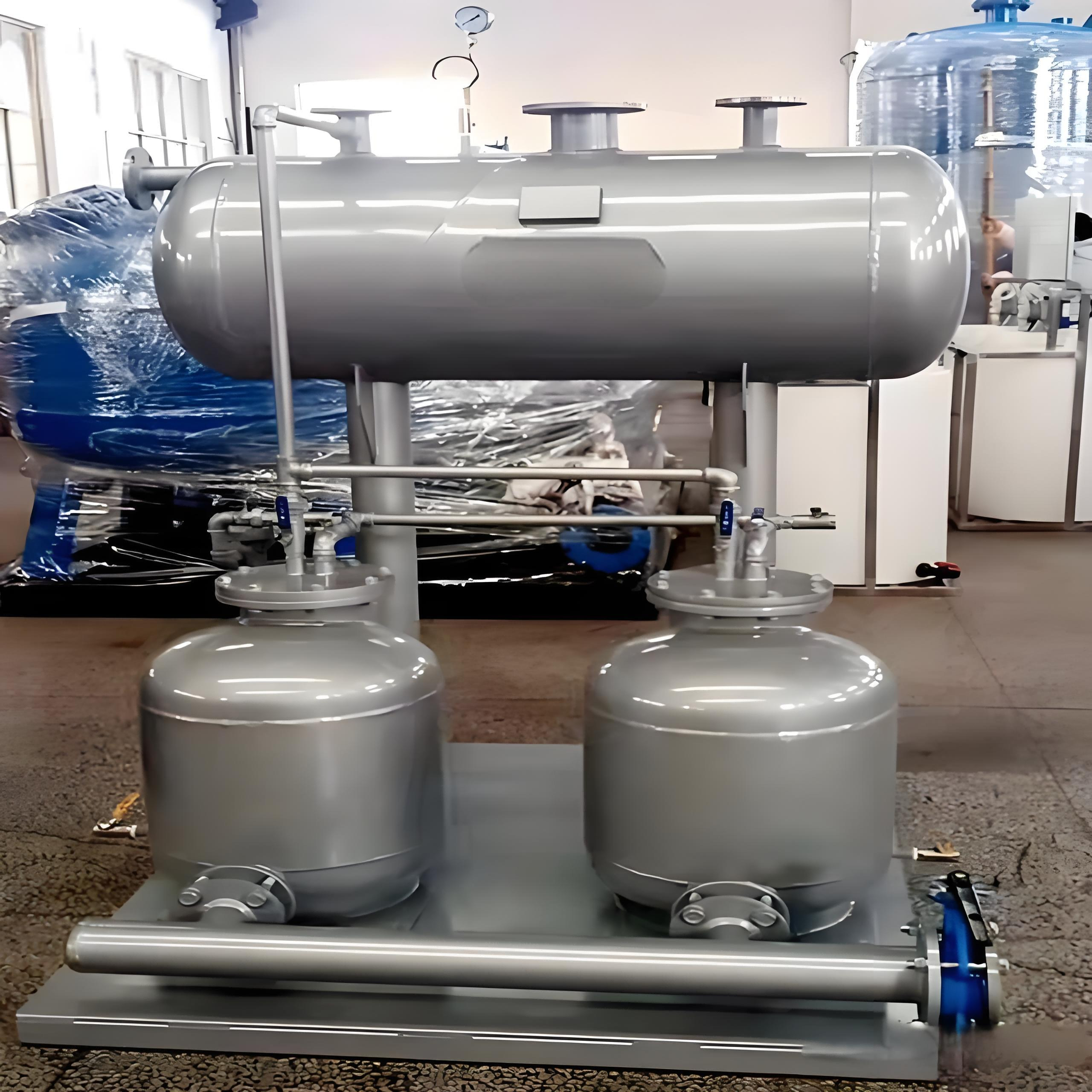

Silver Pneumatic Condensate Recovery For 1-50T Operating Without Electricity

Place of Origin Taian, Shandong, China
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number 1T/H-100T/H
Minimum Order Quantity 1 unit
Price $2000
Packaging Details wooden case
Delivery Time As per requirements
Payment Terms L/C,T/T,Western Union,D/A,D/P
Supply Ability 100 unit/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Pressure 0.1-1.6MPa Power Source Air Or Steam
Drive Mode Pneumatic Operation Mode Automatic
Voltage 220V, 380V, Optional Introduction Pneumatic Condensate Recovery System Is A System That Recovers Condensate Pneumatically Without The Use Of Electricity. It Mainly Consists Of Inlet Check Valve, Float, Supply Valve And Outlet Check Valve.
Recovery Capacity 1-100T/H Application Industrial
Highlight

Pneumatic Condensate Recovery Devices

,

1-50Tonne Condensate Recovery Devices

,

Silver Condensate Recovery Devices
Leave a Message
Product Description

Product Description:

Introducing our innovative Condensate Water Recovery Device, the ultimate solution for efficient heat recovery and water condensate recovery in industrial settings.


Designed for high-temperature applications ranging from 150℃-250℃, our 1000kg-100,000kg/h Pneumatic Condensate Recovery System is a Floor Standing unit that ensures optimal performance and energy savings.


Working on the principles of gravity, pressure, and pneumatic drive, this cutting-edge system offers a reliable and effective method for recovering condensate water. Liquid enters the pump body through the inlet check valve, triggering the float to rise and open the supply valve. Steam or compressed air is then introduced into the pump to create pressure, facilitating the discharge of the liquid through the outlet check valve.


As the float drops, the supply valve closes, resulting in decreased pressure within the pump and allowing the pump chamber to refill with liquid.


Features:

  • Product Name: Pneumatic Condensate Recovery System

  • Voltage: 220V, 380V, Optional

  • Drive Mode: Pneumatic

  • Application: Industrial

  • Material: Carbon Steel, Stainless Steel

Technical Parameters:


Application Scenarios

Occasions that do not require electricity, Flammable, explosive and hazardous media, Wet and dirty environment

Voltage

220V, 380V, Optional

Certifications

ISO9001 Quality System Certification

Recovery Capacity

1-100T/H

Material

Carbon Steel, Stainless Steel

Introduction

Pneumatic Condensate Recovery System is a system that recovers condensate pneumatically without the use of electricity. It mainly consists of inlet check valve, float, supply valve and outlet check valve.

Color

Silver, Blue, Red And Optional

Drive Mode

Pneumatic


Support and Services:

  • The Product Technical Support and Services for the Condensate Water
  • Recovery Device include:
    - Installation guidance and support for proper setup of the device
    - Troubleshooting assistance for any issues that may arise during operation
    - Regular maintenance recommendations to ensure optimal performance
    - Training sessions for users on how to effectively use and maintain the device

FAQ:

Q: What is the brand name of the Condensate Water Recovery Device?

A: The brand name is Tonglida.

Q: What is the model number of the Condensate Water Recovery Device?

A: The model number ranges from 1T/H to 100T/H.

Q: What certification does the Condensate Water Recovery Device have?

A: It is certified with ISO9001 Quality System Certification.

Q: Where is the Condensate Water Recovery Device manufactured?

A: The device is manufactured in Tai'an, Shandong.

Q: What is the minimum order quantity for the Condensate Water Recovery Device?

A: The minimum order quantity is 1 unit.

Q: What is the delivery time for the Condensate Water Recovery Device?

A: The delivery time is as per the customer's requirements.
