8000l/H Customized Condensate Recovery For Low Temperature Environments

Place of Origin Taian, Shandong, China
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number 1T/H-100T/H
Minimum Order Quantity 1 unit
Price $4300
Packaging Details Wooden Case or Optional
Delivery Time 15 working days
Payment Terms L/C,D/A,D/P,T/T,Western Union
Supply Ability 100 unit/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Customization Customization Supported Operation Mode Fully Automatic
Control Mode Fully Automatic Control, PLC Control Installation Floor Standing
Certifications ISO9001 Quality System Certification Product Category Condensate Water Recovery Device
Weight Varies Depending On Model Application Industrial
Highlight

Customized Condensate Recovery Plant

,

Low Temperature Environments Condensate Recovery Plant

,

8000l/H Condensate Recovery Plant
Leave a Message
Product Description

What is Electric Condensate Recovery System?



Condensate in industrial steam systems is collected and reused using electric condensate recovery systems, which lower energy and water waste. An electric pump and control system automatically recover the condensate from the steam system and re-supply it to the boiler or other water-dependent facilities.

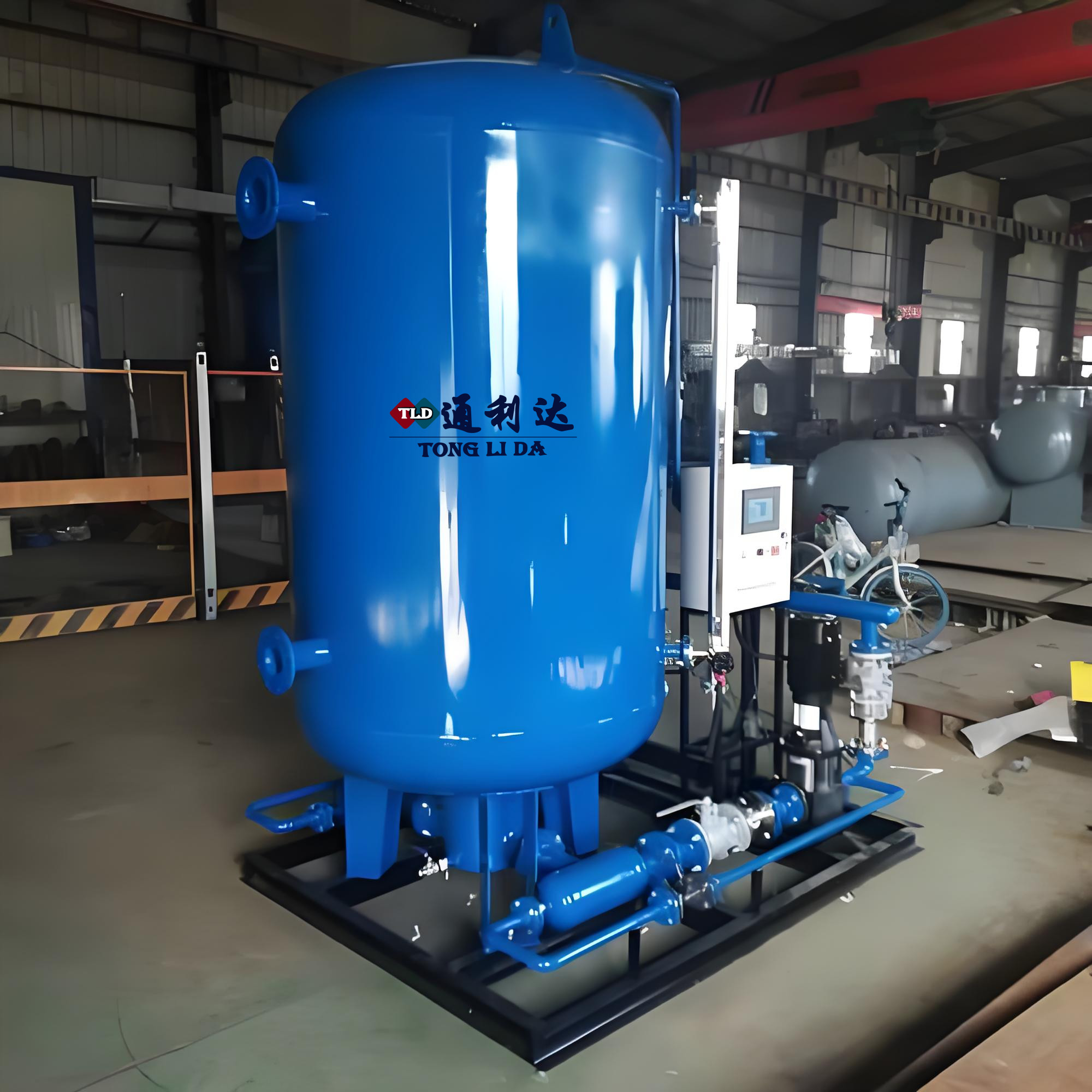

8000l/H Customized Condensate Recovery For Low Temperature Environments 0

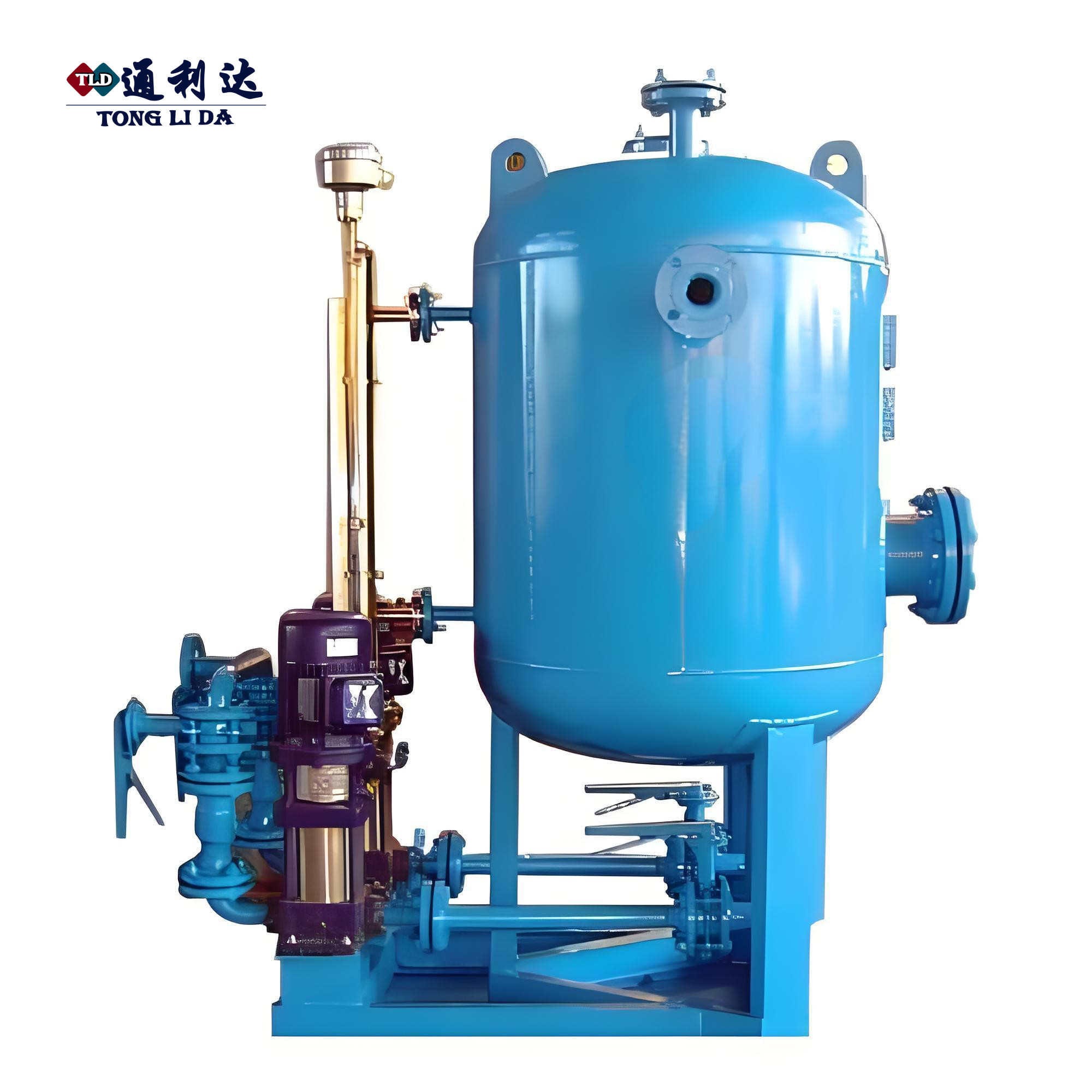

8000l/H Customized Condensate Recovery For Low Temperature Environments 1






Principle of Operation



  • Gathering Condensate

In a working steam system, steam converts heat energy into water, which is subsequently gathered in a catchment tank via pipes.


  • Detection and Management of Water Level

The water collection tank has a water level sensor attached to track the water level in real time. The electric pump will be started automatically by the water level management system when the water level reaches a predefined high level.


  • Condensate transportation

The condensate is moved from the catchment tank to the boiler or other water-using facilities by a motorized pump.

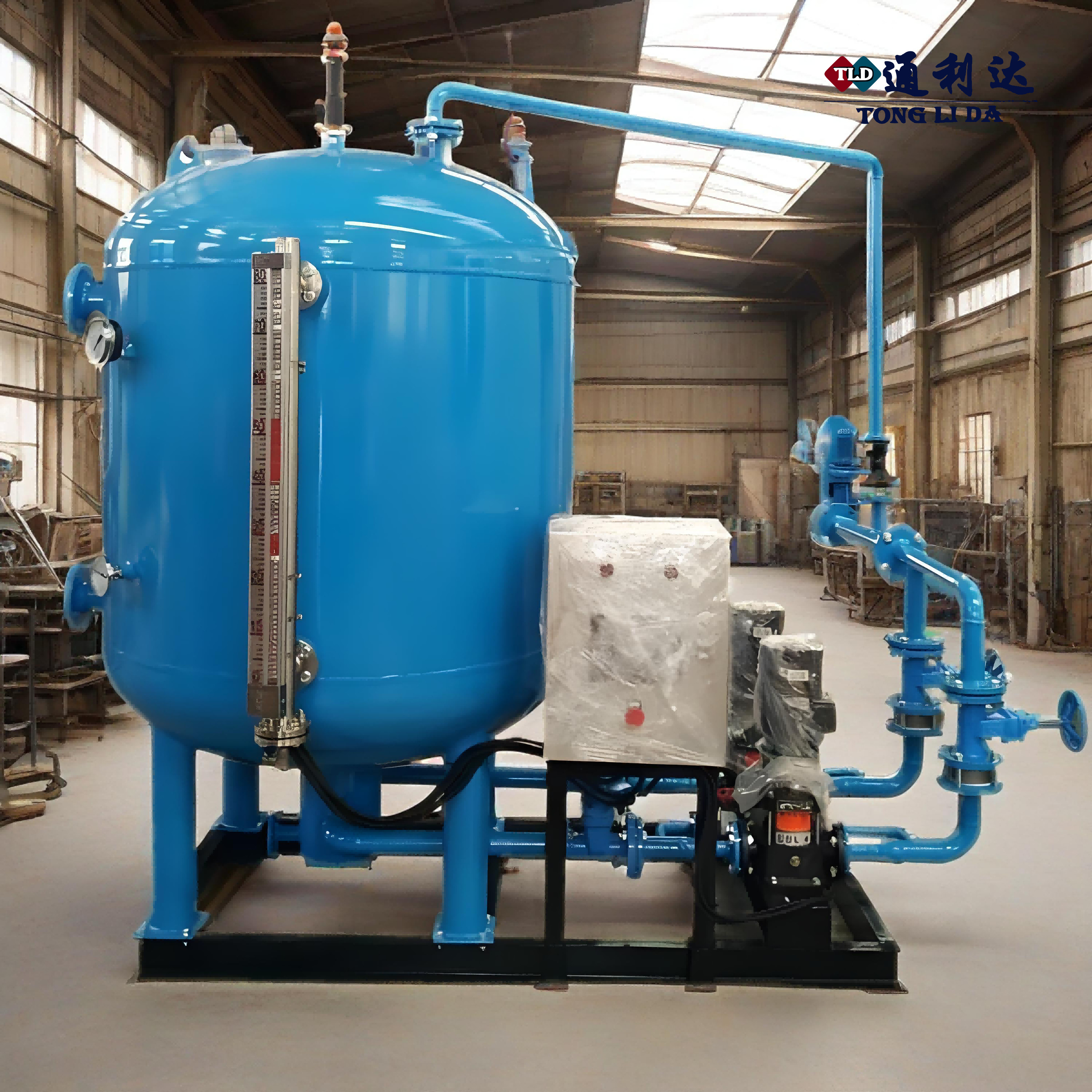

8000l/H Customized Condensate Recovery For Low Temperature Environments 2



8000l/H Customized Condensate Recovery For Low Temperature Environments 3



System Configuration

Size(m)

Weight

Special Requirements

1. Fully automatic control system

1.75*0.9

*1.85

750kg

1. Explosion-proof condensate recovery device (applicable to flammable and explosive gases or dust places, need to consider the explosion-proof level and explosion-proof area)

2. Heat-resistant motor pump: used to deliver high-heat condensate-Double pumps with one backup

2. Automatic control, DCS control, PLC control, etc. are available.

3. According to the liquid level to control the pump start and stop: high sensitivity liquid level controller

3. Materials include stainless steel, carbon steel, etc.

4. Instrumentation: magnetic flip-plate level meter, pressure gauge, temperature gauge

4. High temperature and high pressure design

5. Valves including check valves, globe valves, etc.

5. Intelligent monitoring and control

6. Anti-cavitation devices, vapor separation devices, pressure regulators

6. Customized explosion-proof grade

7. Blowdown apparatus

7. Customized protection level

8. Pipeline filters

8. Customized low temperature

9. Steam condensate recovery tank

9. Customized for high altitude

10. Residual Pressure Utilization Device: Utilizes the residual pressure of the steam system for condensate recovery

10. Can be customized for outdoor

11. Fluid guide and pressurizing device-to ensure the smooth flow of condensate

11. Customized according to customer's requirements





Application Scenarios
Chemical industry, printing and dyeing, power generation, petroleum, papermaking, brewing, light textile, rubber, ceramics.



Application Advantages

  • Energy conservation and emission reduction: recycle condensate and use less energy to cut down on fresh water use.

  • Enhancement of thermal efficiency: The system's thermal efficiency is increased by the efficient use of high temperature condensate.

  • Decreased chemical treatment: Lowers operational costs and lessens dependency on chemical treatment.
