Automatic 1-100T/H Steam Condensate Recovery System Steel Water Recyclers PLC Controlled

Place of Origin Tai'an, Shandong
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number 1T/H-100T/H
Minimum Order Quantity 1 unit
Delivery Time As per requirements

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Anti-cavitation, Energy-saving, Environmentally Friendly Working Pressure 0.1-1.6MPa
Recovery Capacity 1-100T/H Control Mode Fully Automatic Control, PLC Control
Customization Customization Supported Certifications ISO9001 Quality System Certification
Application Fields Papermaking, Chemical Industry, Food Industry, Pharmaceuticals, Grain And Oil Processing, Rubber Industry, Cotton Spinning, Etc. Material Carbon Steel, Stainless Steel
Highlight

100t/h steam condensate recovery system

,

steam condensate recovery system steel

,

automatic condensate water recovery system
Leave a Message
Product Description

Product Description:

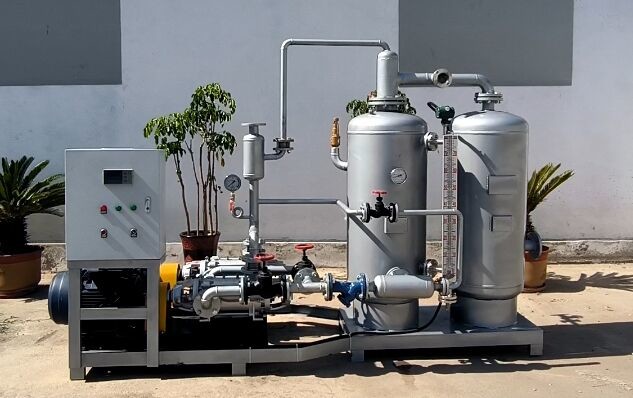

The condensate water recovery device can be designed to be either steam driven or electric driven, based on the user's specific requirements. The purpose of this device is to recover condensate water that can then be transported back directly to the boiler or to a specific location that the user has designated. The condensate water recovery device is equipped with a special pump, motor, recovery tank, cavitation prevention device, liquid level sensor, magnetic flip liquid level gauge, pressure gauge, filter, pressure regulating valve, blowdown valve, control panel, and other components.

When steam condensate water enters the tank, it passes through a steam trap that separates the steam from the water. Once the liquid level sensor detects a high liquid level in the tank, it sends a signal to the control panel to activate the condensate water recovery pump. The high-temperature condensate water, along with a small amount of secondary steam, is then moved through the pump's cavitation elimination device and filter to the specified location, or water tank designated by the user. This fully accomplishes the process of steam condensate water recovery.

If the liquid level sensor detects a low liquid level within the tank, it sends a low-level signal to the control panel, causing the device to shut off. The recovery device runs on fully automatic control mode, including dual backup pumps that switch automatically between them. Turning on the power switches on the device, allowing it to function.

Model number Recovery volume Weight Tank diameter Equipment dimensions
TLD-1T/H-A 1T/H 360kg 450 1300*500*1600
TLD-2T/H-A 2T/H 550kg 500 1600*700*1600
TLD-4T/H-A 4T/H 750kg 550 1500*600*1700
TLD-6T/H-A 6T/H 880kg 600 1750*800*1700
TLD-8T/H-A 8T/H 900kg 800 1800*900*2100
TLD-10T/H-A 10T/H 980kg 1000 1900*1100*2200
TLD-2T/H-B 2T/H 450kg 350 2300*500*1900
TLD-4T/H-B 4T/H 800kg 450 2700*1100*2000
TLD-6T/H-B 6T/H 880kg 550 2900*1200*2000
TLD-8T/H-B 8T/H 1000kg 800 3200*1300*2100



Features:

Anti-cavitation, energy-saving, and environmentally friendly are three key characteristics that describe the advanced technology used in our product offerings.

With anti-cavitation technology, our products are able to prevent harmful bubbles from forming, reducing the wear and tear on the equipment and improving overall durability. This not only saves you money in maintenance costs, but also helps to improve the product's lifespan.

Our products are designed with energy-saving technology that preserves energy while carrying out their specific functions, ultimately resulting in a more cost-effective and eco-friendly solution. This means that you'll be able to use our products for longer periods of time without depleting your resources.

Finally, our commitment to environmental conscientiousness is reflected in our focus on developing and promoting environmentally friendly products. We pride ourselves on being part of the next generation of innovative, sustainable technology.

Our Advanced Technology:
  • Anti-cavitation : Our products are designed to prevent harmful bubbles from forming, which helps in reducing equipment wear and tear.
  • Energy-Saving : Our products help you save energy and provide cost-effective solutions.
  • Environmentally Friendly : Our sustainable technology promotes environmental awareness, ensuring a more eco-friendly approach.



Applications:

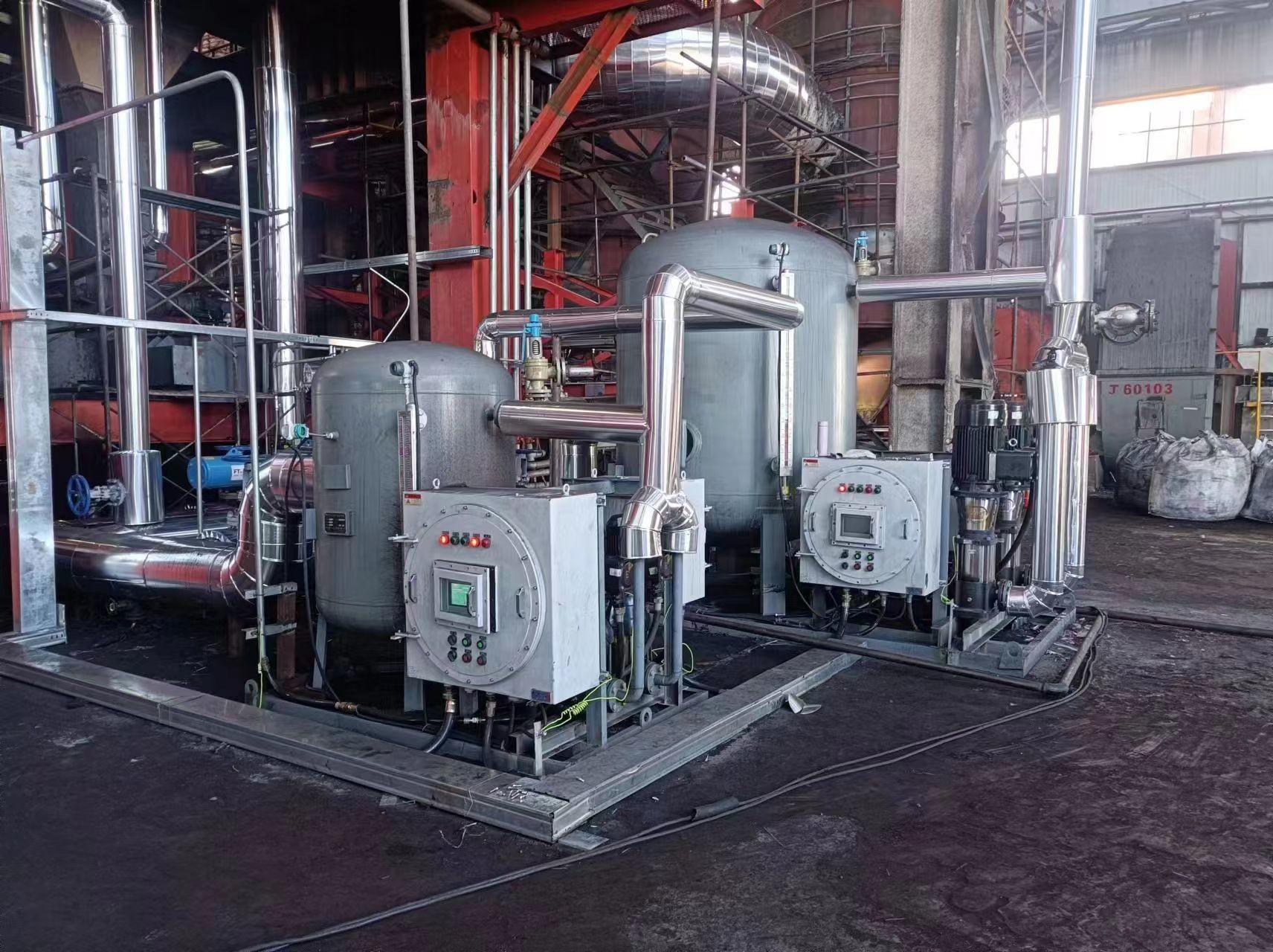

Our product is highly versatile, as it is relied on by various industries such as papermaking, chemical, petroleum, printing and dyeing, textile, brewing, and rubber. It is specifically designed for steam heating systems that require closed-loop condensate water recovery in these industries.

Our innovative solution is highly effective at converting condensate water generated by indirect heat exchange systems into closed-loop recovery. This has made it a reliable alternative to conventional open condensate water tanks.

Beyond industrial enterprises, our product is also suitable for use in other settings such as hotels, hospitals, and other civil buildings. The convenient and effective condensate water recovery system is a testament of our firm commitment to innovation in solving various needs in different sectors.



Support and Services:

Our technical support team is available to assist with any questions or concerns regarding installation, operation, and maintenance of the device. Our team is dedicated to providing reliable and timely support to ensure your satisfaction with our product.
